GWUYU

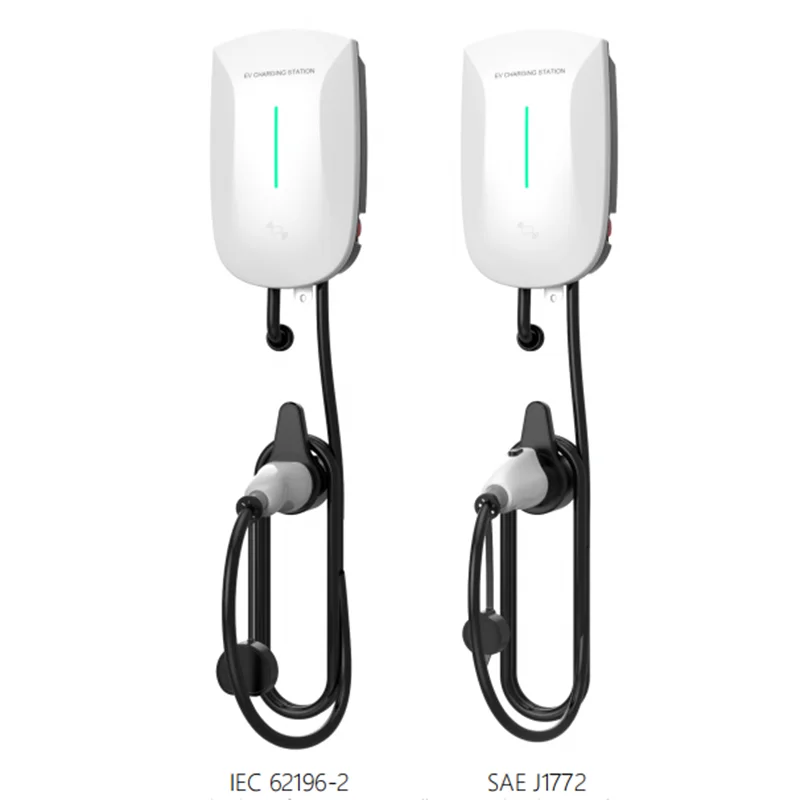

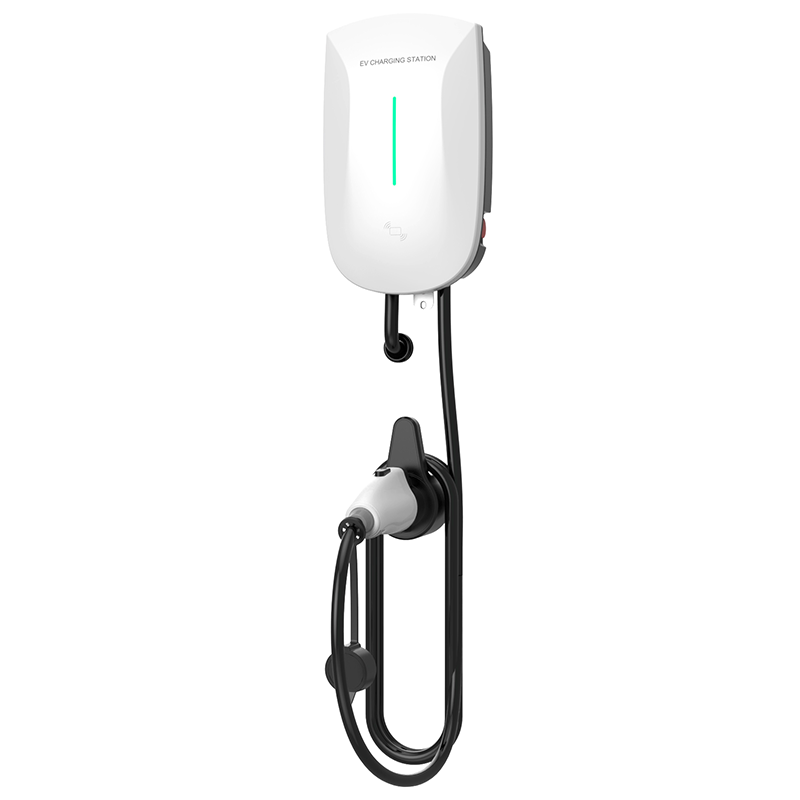

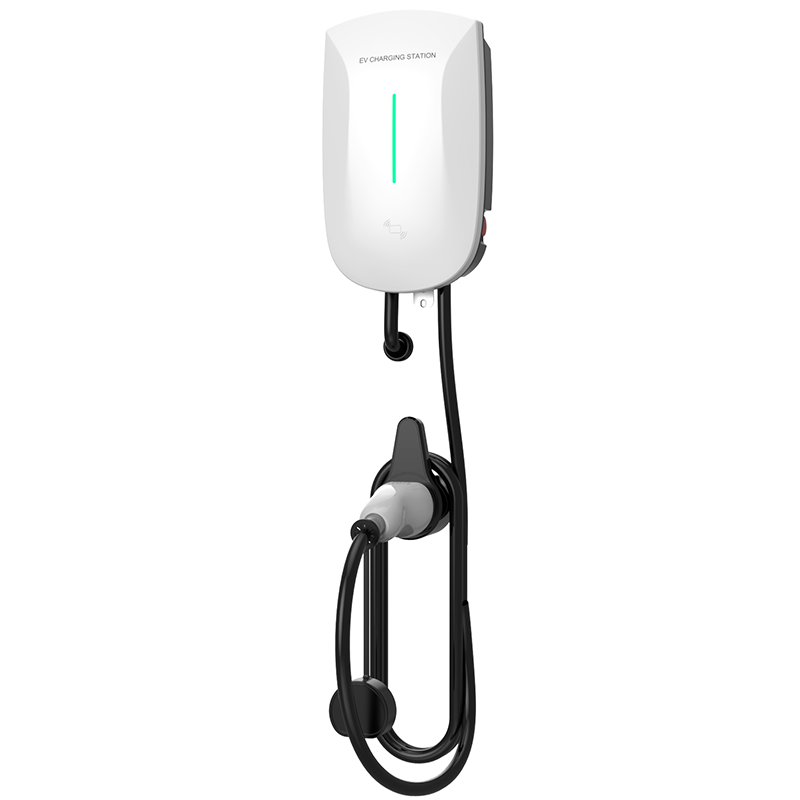

Wall-mounted AC pile JZ30 European

standard/JZ30-1 American standard

Product Operation Manual

Thank you for using JZ30 wall-mounted exchange pile!

Please read carefully before use.

State

1.This manual is only for the domestic AC charging

pile series developed and produced by BoratuProd

uct use, this document contains the important points

that must be followed when using the charging pile

Indication and warning.

2.This manual provides detailed products for users

who use AC charging piles Information and operating

instructions. Please read the manual carefully before

using this product The contents shall be operated in

strict accordance with the safety instructions, and the

manual shall be properly kept,For later installation,

operation and maintenance personnel to obtain

instructions.

3.This manual will be updated, adjusted and revised

according to the actual product upgrade,Users should

be subject to the actual products they purchase.

4.In the actual use process of the product, there is

failure or doubt, and there is no If the law is learned

and solved through this manual, please contact us in

time,Do not operate by yourself.

5.The contents of this manual and the pictures, logos

and symbols used are all owned by Boratu. Without

written authorization, it is not allowed to publish,

extract and copy without authorization Part or all of

the contents of this manual shall not be in any form

(including materials and publications).

Warn The use of charging piles is prohibited in the following

cases, and the manufacturer should be contacted immediately:

·The charging pile shell is damaged

·The charging gun or charging cable is defective, cracked, worn, cracked, and the

charging cable is exposed

·Lightning strikes the charging pile

·Accident or fire near the charging pile

·Charging pile water inflow

·The length of the charging pile gun line is not enough to connect

to the vehicle, and an extension line needs to be installed

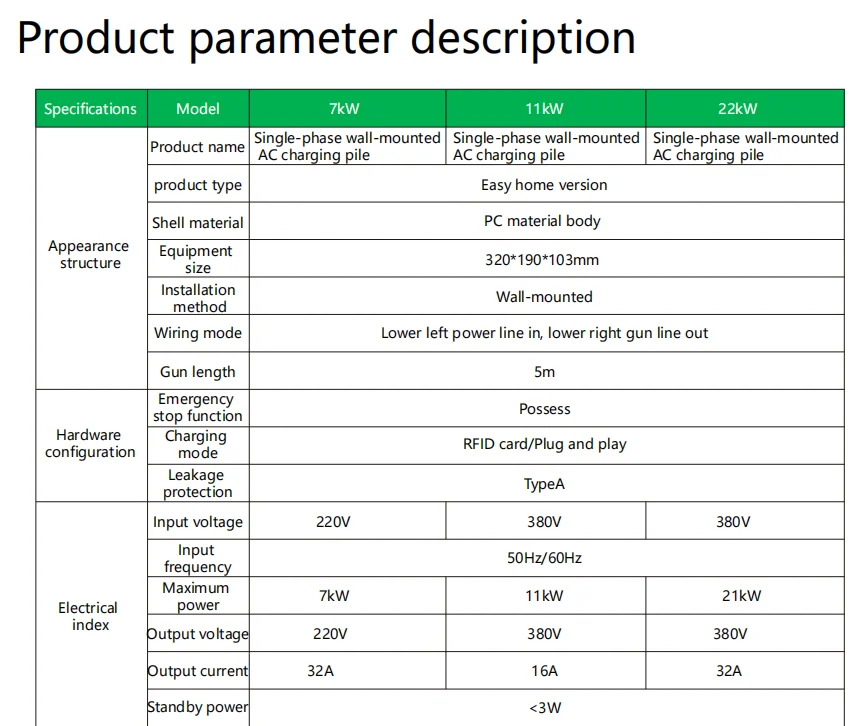

Product Overview

This product is used for AC slow charging of electric vehicles. The

product design is highly simple and can be divided into three

specifications: 7KW/11KW/22KW. Provide card swiping and plug

and play charging mode, with multiple security protection

And other functions. The equipment adopts the principle of i

ndustrial design, with original dumping protection function to

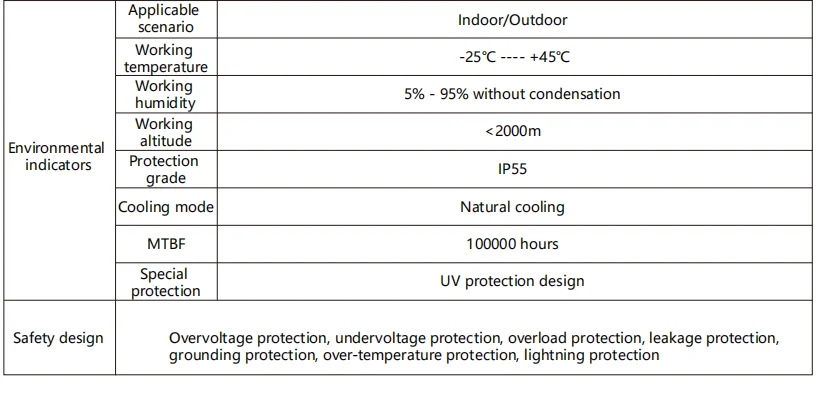

ensure the equipment operation Line safety. The protection grade

of the whole machine reaches IP55, with good dustproof and

waterproof functions Outdoor safe operation and maintenance.
